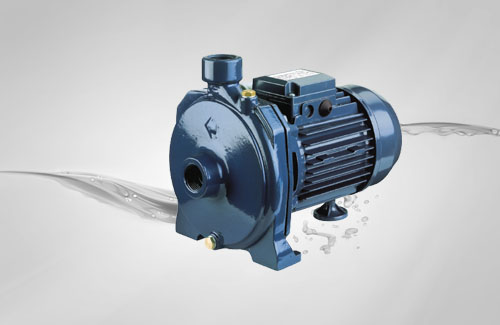

Centrifugal Pumps - CMF
Application
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow fates. Suitable to pump clean water or non-aggressive liquids charged with small solid impurities. To be used in flow irrigation systems, in gardening and agriculture and in industrial fittings.
Condition of Usage
- Maximum Working pressure 3.5 bar- Liquid temperature up to 60°C, Ambient temperature
up to 40°C & Total suction lift up to 8m
- Continuous duty
Technical Data
- TEFC 2 pole motor with Insulation Class F- Protection degree IP54/IP55
- I-230 V+/-10% 50HZ, 3-230/400V+/-10% 50HZ
- Permanent split capacitor and automatic thermal overload for single phase version
- Thermal protection to be provided by the user for three phase version
Material
- Casing in CI/Impeller in Bronze, Stainless steel (optional)- Shaft in SS 303 & Mechanical seal in Carbon/ Ceramic/NBR
